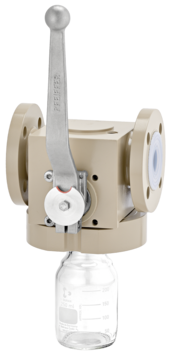

BR 27d - pneumatic - DIN
Sampling valve
VALVE STYLE
Sampling valve
USAGE
- Sampling
- Mixing or diverting service
VERSION
DIN
MEDIUM TEMPERATURE
-10
to 200 °C /
14
to
392 °F
SUPPLY
Pneumatic
VALVE SIZE
DN 25
to
DN 80
PRESSURE RATING
PN 16
LINING
PFA
Special features
- Discontinuous sampling valve
- Consisting of sampling valve and hand lever or actuator or dead man‘s handle
- Inline sampling ball valve for horizontal installation
- Tight-closing, cavity-free PFA-lined sampling valve designed to sample liquids from flowing media without a bypass
- Body of 1.0460 with PFA lining
- Ball/shaft of 1.4021 with PTFE coating
- Representative sampling due to the direct installation in the pipeline
- DIN ISO 5211 interface as standard
- PTFE V-ring packing loaded by disk springs
- No necking or abrasion of the pipeline during sampling
- Venting or control connection 1/4"
- Seat ring shells for a sampling without cavity
- The sampling valve has a connection as per ISO 4796, DIN thread GL 45
- Leakage requirements according to DIN EN 12266 or API 598
- Sampling with a defined sample volume from a material flow
- Diverse sample volumes
- In the case of liquid media, depressurised sampling and therefore sampling from pressures to 16 bar and from vacuum permissible
- No fore- and no after-running
- No risk of overflow as the sample volume is determined per stroke
- No direct connection to the environment
- No false operation due to long opening times
Accessories
- Hand lever
- Actuator
- Protective box in stainless steel
- Special gas chamber exhaust
- Pneumatic switch box for automation
- Pneumatic timer
- Counter
- Adapter for locally employed sample containers
Options
- Automatic with 180° rotary actuator
- Hand lever (180°)
BR 27d - pneumatic - DIN can be combinated with the following actuations:
Special features:
- Single-acting and double-acting piston actuator
- Suitable for strict requirements in chemical plants
- Opening angle 90°
- Signal pressures up to 10 bar
- Torques from 5 to 11674 Nm
- Temperatures from –40 to +80 °C
- End positions adjustable within wide range (+5°/–15°)
- Diagonal or parallel square drive position
- Position indicator adjustable in steps of 45°
- Encapsulated spring assemblies
- Power transmission without clearance thanks to involute gearing
- Direction of rotation reversible without requiring additional parts
- Surface treatment tested by Kesternich sulfur dioxide corrosion test and salt spray test
- Centering ring milled into the housing
- Standardized attachment of valve accessories according to VDI/VDE 3845 or NAMUR
- Simple attachment according to DIN EN ISO 5211
- Blow-out-proof travel stop screws
- Fast stroking speeds as standard
Special features:
- Single-acting and double-acting piston actuator
- Suitable for strict requirements in chemical plants
- Opening angle 90°
- Signal pressures up to 10 bar
- Torques from 18 to 1702 Nm
- Temperatures from –40 to +80 °C
- End positions adjustable within wide range (+5°/–15°)
- Additional pneumatic input at the top shaft end
- Diagonal or parallel square drive position
- Position indicator adjustable in steps of 45°
- Encapsulated spring assemblies
- Backlash-free force transmission thanks to involute gearing
- Direction of rotation reversible without requiring additional parts
- Surface treatment tested by Kesternich sulfur dioxide corrosion test and salt spray test
- Centering ring milled into the housing
- Standardized attachment of valve accessories according to VDI/VDE 3845 / NAMUR and VDI/VDE 3847
- Simple attachment according to DIN EN ISO 5211
- Blow-out-proof travel stop screws
- Fast stroking speeds as standard
- Integrated Automation acc. to VDI/VDE 3847
